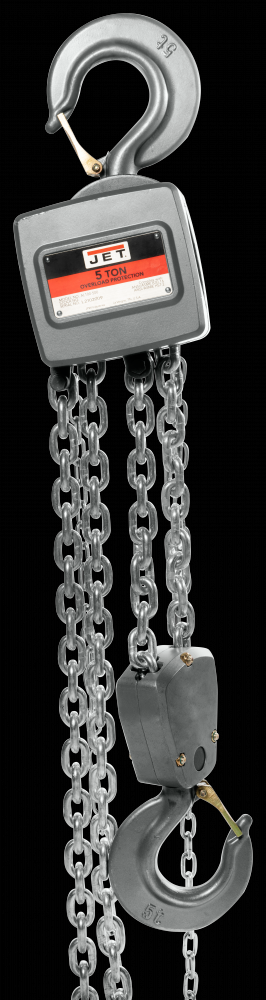

AL100-500-15 5T CHN HST 15FT LIFT by Jet - US
Call For Price
- Part Number: 133515
- UPC: 00731325843095
- Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Manual Chain Hoists have been around for decades, with one main advantage: they help lift heavy materials. Now, JET is changing the game. With the all new JET AL100 Series Manual Chain Hoist, lifting heavy material just got easier. How? The AL100 Series is 20% lighter, 20% thinner, and offers the smallest head room compared to the closest competitor on the market.
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
11200
Capacity (Lbs.) (Unit):
Pound
Country of Origin:
China
Hand Chain To Lift Load 1 ft.:
191
Headroom (In.) - TS_14:
22-13-16
Item Height (inches):
13.75
Item Length (inches):
15.38
Item Weight (lbs):
84.05
Item Width (inches):
8.25
Lbs. of Pull to Lift Capacity:
82
Lift (Ft.):
15
Lift (Ft.) (Unit):
Feet
Load Capacity (Tons):
5
Load Chain Dimensions dia/mm):
9 x 27
Prop 65:
View
Warranty:
Lifetime
Manufactured By:
Jet - US
Other Details
Cast steel safety latches
Complies with ANSI/ASME B30.16 and HAST-2 Standards
Dual pawl Weston style brake
Extra large hand chain opening for side chain pulling
Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance
Patented Fused Brake Design provides durability and increases safety backed by a lifetime replacement warranty
Sealed housing to provide extra protection against the elements
