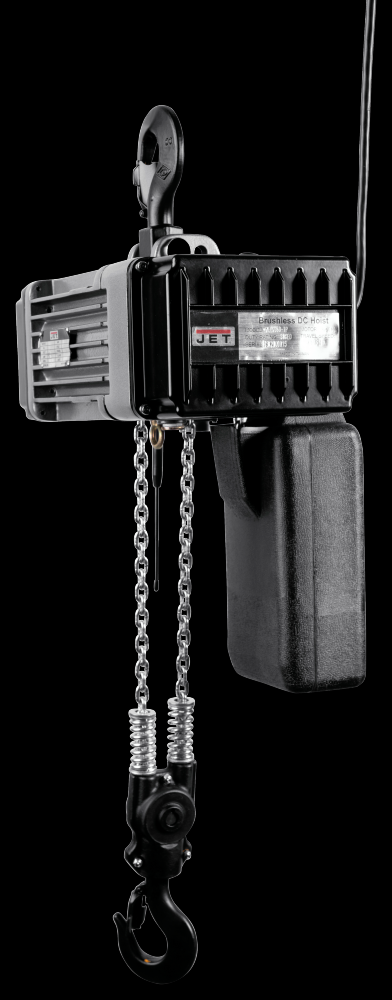

BLVS050-010 1/2T ELEC HST 10' LIFT 1 P by Jet - US
Call For Price
- Part Number: 104022
- UPC: 00731325854527
- Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
JET® Trademaster® Series electric hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
1100
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
Taiwan
Duty Cycle (%):
30
Duty Cycle Rating:
H3
Headroom (in.):
19-1/2
Headroom (In.) - TS_14:
19-1/2
Item Height (inches):
16.5
Item Length (inches):
21.3
Item Weight (lbs):
50
Item Width (inches):
12.2
Lift (Ft.):
10
Lift (Ft.) (Unit):
Feet
Lifting Speed (FPM):
0-5 / 21
Load Capacity (Tons):
2-Jan
Max. Number of Starts (Per Hr.):
180
Max. On Time (Min. / Hr.):
30/7.5
Motor (HP):
0.8HP, 120V, 1PH
Motor Current (Amps):
10
Motor Phase:
Single
Motor Voltage (V.):
120
Overall Width (In.):
10/2/2005
Overload Protection:
Yes
Prop 65:
View
Warranty:
2 Year
Manufactured By:
Jet - US
Other Details
1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
30 / 7.5 Time ratings
Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
Low noise at less than 75 dBA
Overload protection using slip clutch system to protect hoist from loads over rated capacities
Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
TAA Approved
