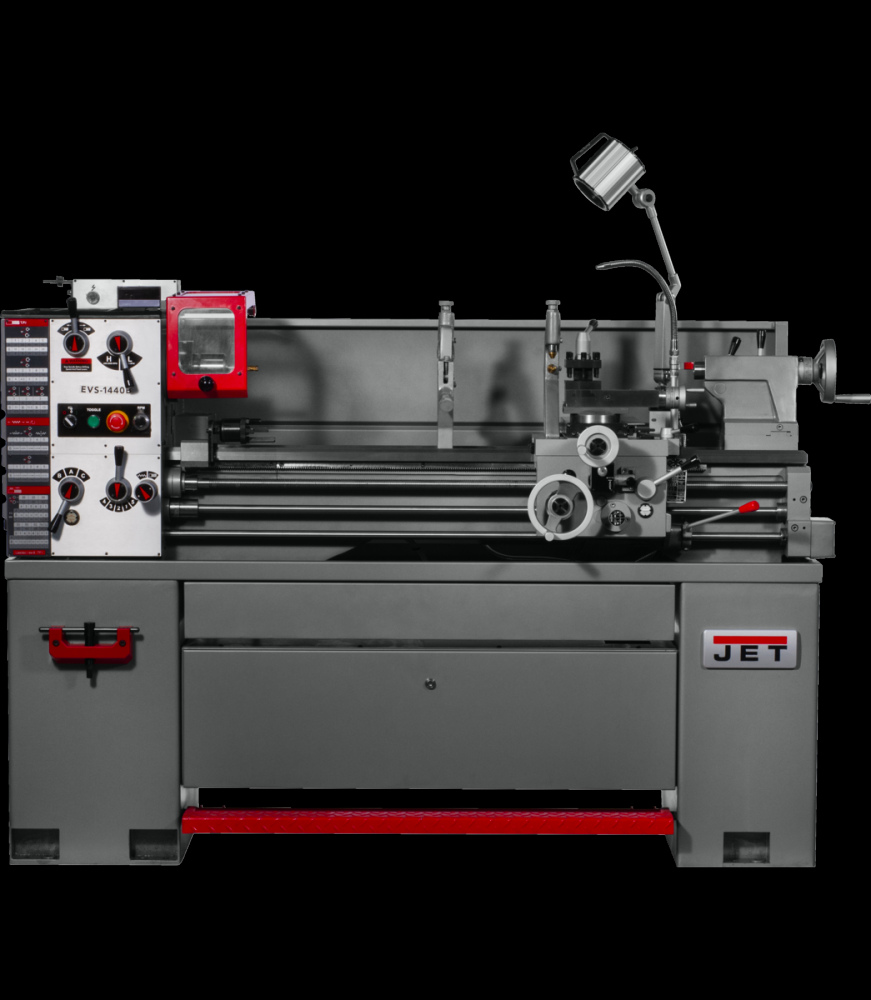

EVS-1440B EVS LATHE by Jet - US
Call For Price
- Part Number: 311440
- UPC: 00731325785777
- Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machine Tool Accessories
Compound Slide Travel (In.):
3/1/2002
Configurable Base Item:
Yes
Country of Origin:
Taiwan
Cross Slide Travel (In.):
7
Cross Slide Travel (In.) (Unit):
Inch
Distance Between Centers (In.):
40
Drive:
EVS
Gross Weight (Lbs):
1584
Gross Weight (Lbs) (Unit):
Pound
Input Power:
230V 3ph
Item Height (inches):
50
Item Length (inches):
68.5
Item Weight (lbs):
1584
Item Width (inches):
28.3
Length of Gap (In.):
9/1/2002
Max Tool Size (In.):
3/4 x 3/4
Motor (HP):
3 HP, 230V, 3-Phase
Motor Phase:
3
Motor Power (HP):
3
Motor Voltage (V.):
230/460
Net Weight (Lbs.):
1320
Net Weight (Lbs.) (Unit):
Pound
Number of Inch Threads:
34
Number of Longitudinal and Cross Feed Rates:
25
Number of Metric Threads:
34
Number of Spindle Speeds:
Variable
Overall Dimensions (L x W x H) (In.):
68.5 x 28.3 x 50
Prewired Voltage (V.):
230
Prop 65:
View
Range of Cross Feeds (IPR):
25
Range of Inch Threads (TPI):
Feb-56
Range of Longitudinal Feeds (IPR):
0.0016-0.0460
Range of Metric Threads:
0.5-12
Range of Spindle Speeds (RPM):
40-2000
Spindle Bore (In.):
1/1/2002
Spindle Mount:
D1-4
Spindle Taper:
Morse #5
Spindle Taper with Sleeve:
MT-5
Spindle Thread (In./TPI):
Feb-56
Steady Rest Capacity (In.):
0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed (In.):
14
Swing Over Cross Slide (In.):
9/1/2016
Tailstock Spindle Travel (In.):
6/1/2008
Taper in Tailstock Spindle:
MT-3
Warranty:
2 Year
Width of Bed (In.):
7.48
Manufactured By:
Jet - US
Other Details
4-Position Carriage Stop
6" 3-Jaw Chuck
Chuck Guard
Compound and cross slide have backlash elimination
Electronic Chuck Key Docking Station
LED Work Lamp
Standard Equipment
Steady & Follow Rest
Threading Dial Indicator
Threading Dial Indictor
